Start your journey with a logical plan.
About
Operating within the Southern Highlands of New South Wales, Australia – Logic Drafting endeavors to produce accurate residential construction plans & technical drawings fit for purpose.
Projects may include:
- New Residential Dwellings
- Alterations & Additions to Existing Residential Dwellings
- Ancillary Structures, including Sheds, Carports & Granny Flats
Offering project guidance from Concept Stage through to Construction Stage & advice based on local planning controls & regulations, with the goal to deliver logical plans, inspired by your unique ideas.
Services
- Concept Plans
- Development Application Plans (DA)
- Construction Plans (CC)
- Complying Development Plans (CDC)
- Existing Condition Plans
As well as:
- Management of the Approval Process through Council &/or Private Certifier for both DA/CC or CDC avenues.
- Coordination with Town Planner
Servicing the Southern Highlands & Wingecarribee including:
Moss Vale, Bowral, Mittagong, Robertson, Hill Top, Colo Vale, Yerrinbool, Berrima, Canyonleigh, Sutton Forrest, Exeter, Burrawang, Fitzroy Falls, Bundanoon, Penrose, Wingello & beyond!
The Planning Process – Concept Plan
Your ideas will be developed into a set of Concept Plans. Generally consisting of a simple site plan, floor plan, elevations & some 3D perspective views.
Concept plans are a relatively quick & simple solution to visualize a project & settle on some critical ideas.
A Concept Plan is the basis of initial communications & will set a foundation for the project to move to the next stage.
Development Application Plan – DA
A Development Application Plan will contain sufficient information for planning approval through the local council. As well additional details regarding window/door schedules & BASIX requirements.
The main objective of a Development Plan is to gain development approval from council.
Other documents are required to accompany a Development Application & will be determined on a site-to-site basis.

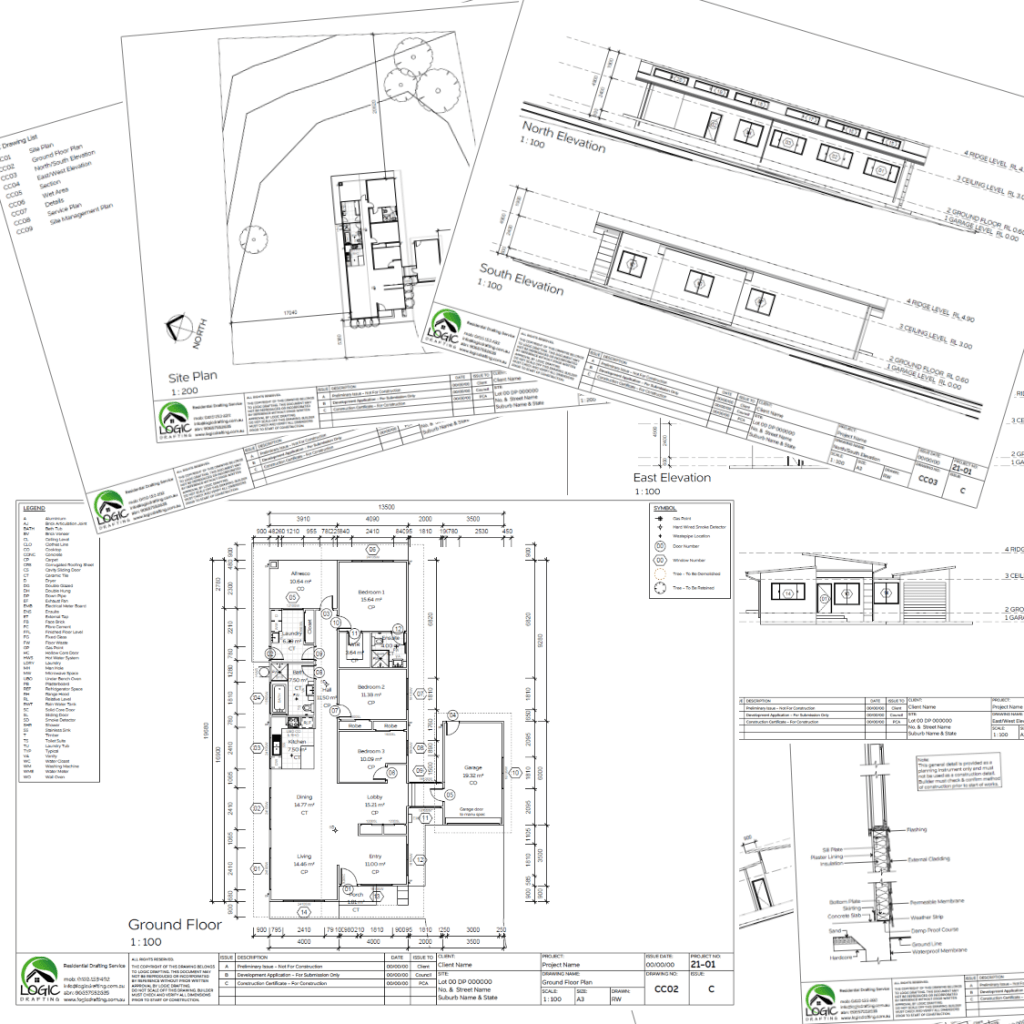

Construction Plan – CC
A Construction Plan shall be produced after a DA has been approved. This plan is used to obtain a Construction Certificate & for your builder to erect the structure, in conjunction with other contractors plans & documents.
The level of detail included in a Construction Plan is project-dependent.
Complying Development – CDC
A Complying Development Plan can be considered a combination of a Development Application Plan and Construction Plan. This plan can be used for avenues of complying approval, which may be gained through council or a private certifying authority.
Generally a quicker approval process – however requires more decision making, planning & costs up-front & must comply with all relevant controls & regulations.
Cost
Initial Site Meeting, Measure & Consultation – Free
Plans are produced based on an up-front quote, after the initial site meeting.
Management of the approval process may be inclusive of the up-front quote, or may be charged at an hourly rate.
Additional works &/or changes to plans may be charged at an hourly rate.
Contact
Email: info@logicdrafting.com.au
Mobile: 0403 148 515
